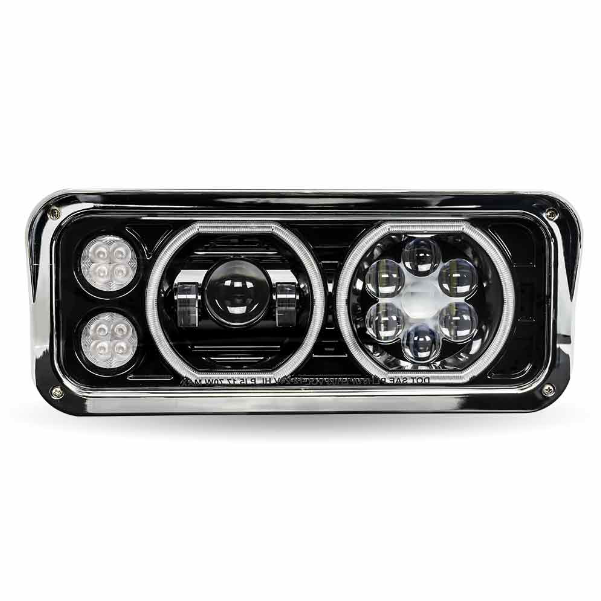

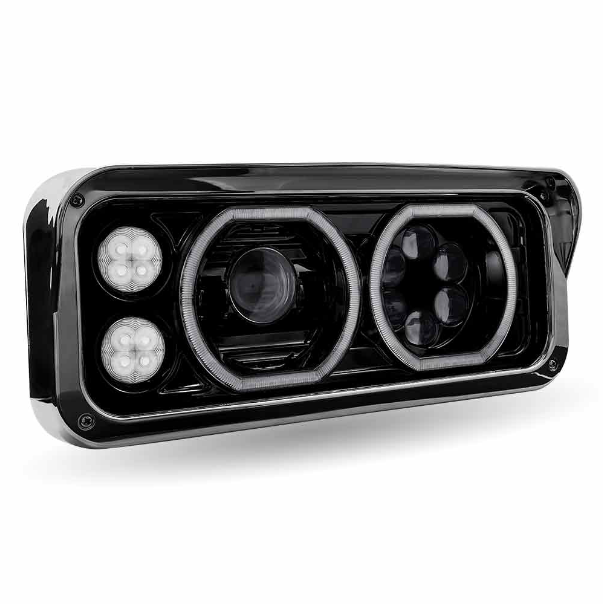

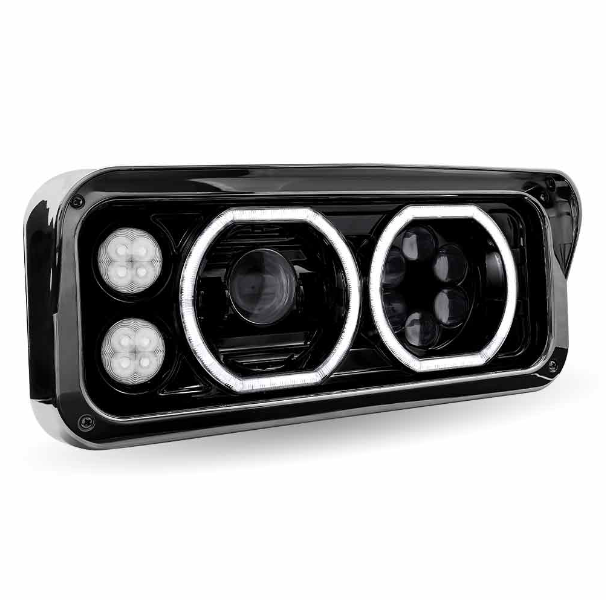

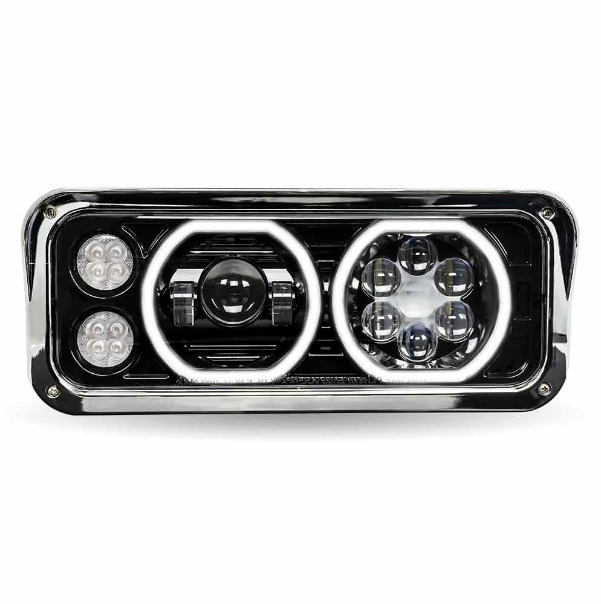

Name: Universal LED Projector Headlight Assembly with Glow Position Halos & Marker LEDs – Black (Passenger Side) - Planet Truck Parts
SKU: TLED-H123-T
Price: 449.99 USD
Availability: InStock

Patented Design
Included Integrated Traditional Visor, Housing Bucket, Tools & Hardware
White Glow Position (DRL Auxiliary) Halo LEDs
Amber Marker LEDs
Projector Technology for a Wider Beam
Replaces OEM 4″ x 6″ Headlight Configurations
3 Year Warranty

Product Description	Universal LED Projector Chrome Headlight Assembly with Glow Position Halos & Marker LEDs – Passenger Side
Style	Freightliner, Kenworth, Peterbilt, Western Star
Size	Double 4" x 6"
Sold	Individually
Compliance	CMVSS-108, DOT/SAE, FMVSS-108
Bulb Type	LED Projector
Function 1	Combination High & Low Beam
Function 2	Marker LEDs & Glow Position Halo Rings
LED Power	High: 19.2 Watts, Low: 17.3 Watts
Raw Lumens	High: 2100 Lumens, Low: 1400 Lumens
Effective Lumens	High: 1225 Lumens, Low: 830 Lumens
Operating Voltage	9-30 Volts (DRL Compatible)
Function 2 Amperage	0.44 Amps @ 12 Volts
DRL Amperage (Watts/Amps)	0.16 Amps
Diodes	High: 7 Diodes, Low: 3 Diodes
Interior Color	Black
Lens Color	Clear
Lens Material	Polycarbonate
Housing Material	Polypropylene
Waterproof Rating	IP66 Rating
What's Included	Housing Bucket & Hardware Included
Package Dimensions	18.8"L x 9.5"W x 9.8"H
Package Weight	9.6 lbs
Inner Box QTY	1 PC
Outer Box Qty	6 PCS
Warranty	3 Year Warranty
Current Draw @ 12.8 Volts	High: 1.50 Amps, Low: 1.25 Amps
