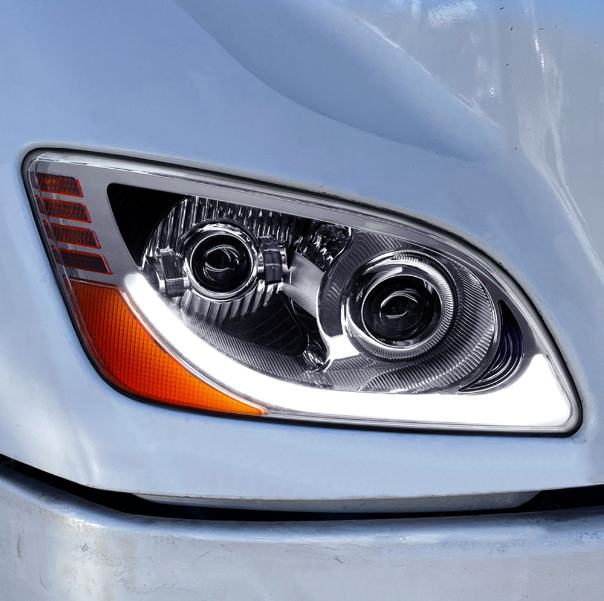

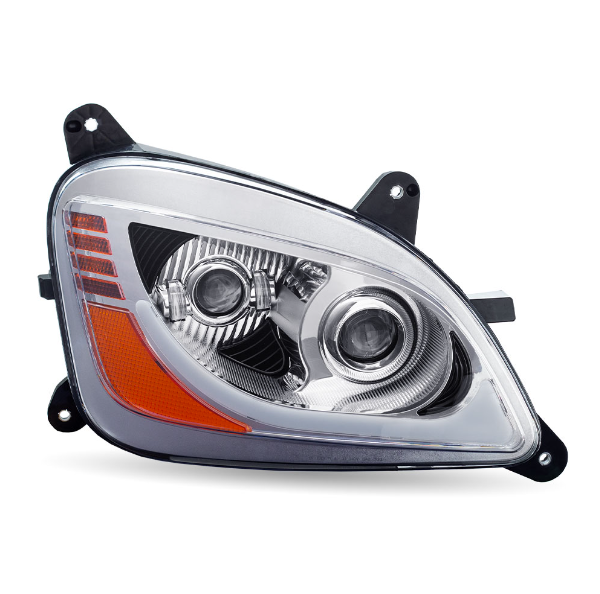

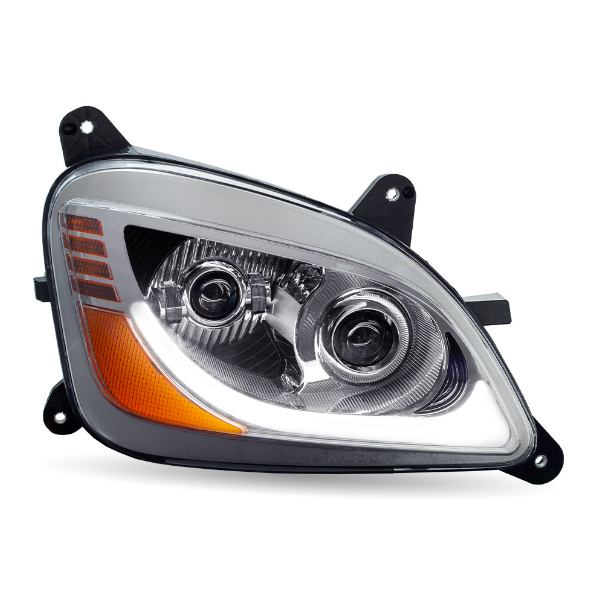

Name: PB. 579/587 LED Projector Headlight Assembly – Chrome (Passenger Side) - Planet Truck Parts
SKU: TLED-H151-T

Designed to fit: Peterbilt 579 (2012-2022) & Peterbilt 587 (2010-2016)

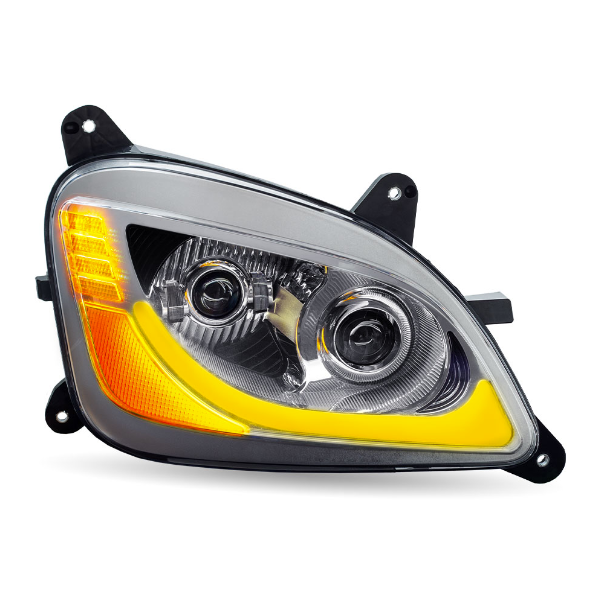

Dual Function White Glow Position (DRL Auxiliary) & Amber Turn & Marker LED Accent
LED Side Marker
“Plug & Play” for Easy Installation
Projector Technology for a Wider Beam
3 Year Warranty

Bulb Type	LED Projector
Compliance	CMVSS-108, DOT SAE, FMVSS-108
Current Draw @ 12.8 Volts	High: 1.64 Amps, Low: 0.36 Amps
DRL Amperage (Watts/Amps)	1.28 Amps @ 12.8V
Effective Lumens	High: 1600 Lumens, Low: 1200 Lumens
Function 1	Combination High & Low Beam with Glow Position (DRL Auxiliary)
Function 2	Turn Signal & Marker
Housing Material	ABS
Inner Box QTY	1 PC
Interior Color	Chrome
LED Power	High: 21 Watts, Low: 4.6 Watts
Lens Color	Clear
Lens Material	Polycarbonate
Operating Voltage	9-30 Volts
Outer Box Qty	2 PCS
Package Dimensions	26.4"L x 17.1"W x 13.6"H
Product Description	Peterbilt 579/587 LED Projector Headlight Assembly with Glow Position (DRL Auxiliary), Turn & Marker Accent – Chrome (Passenger Side)
Raw Lumens	High: 3200 Lumens, Low: 2400 Lumens
Side Marker Amperage (Watts/Amps)	1.28 Amps @ 12.8V
Size	OE
Sold	Individually
Style	Peterbilt
Turn / Marker Amperage (Watts/Amps)	0.063 Amps @ 12.8V
Warranty	3 Year Warranty
Waterproof Rating	IP66 Rating
